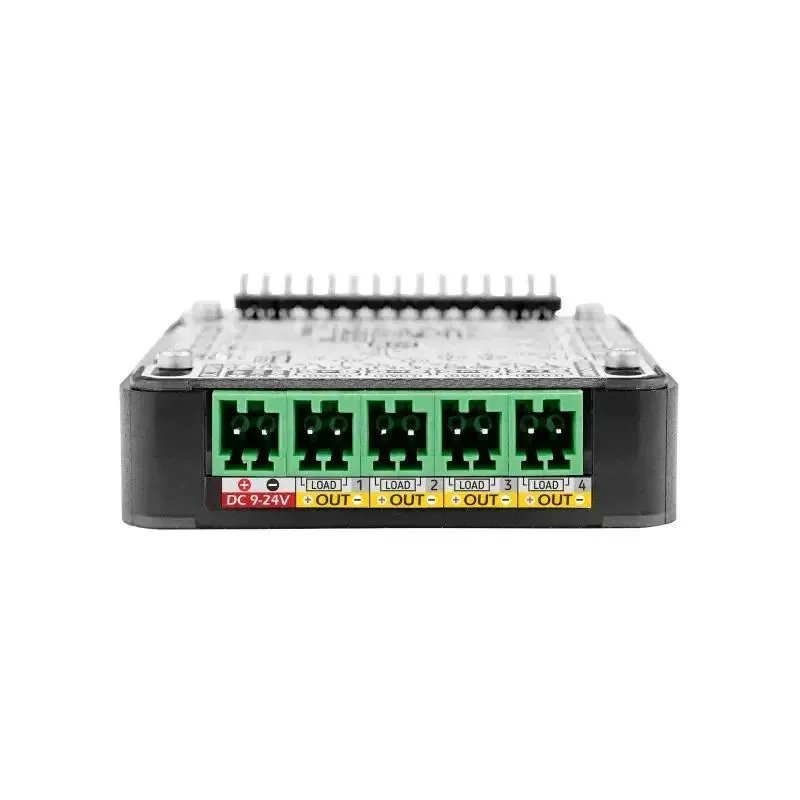

M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030)
M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030)
M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030)
M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030)
Title:
  • DefaultTitle

$ 24.93

$ 24.93

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

＋

Description

  • M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030)

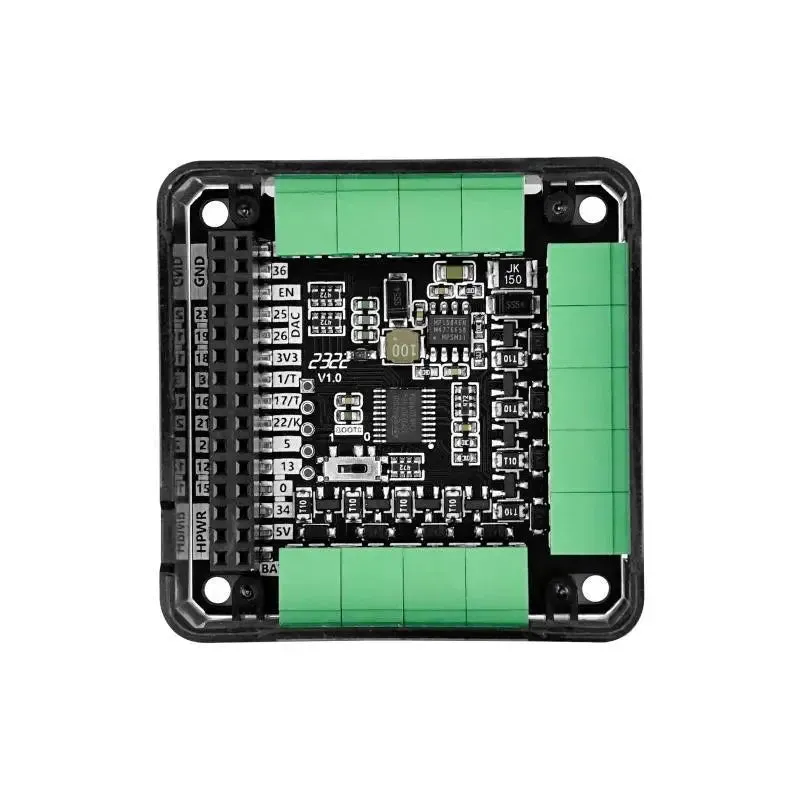

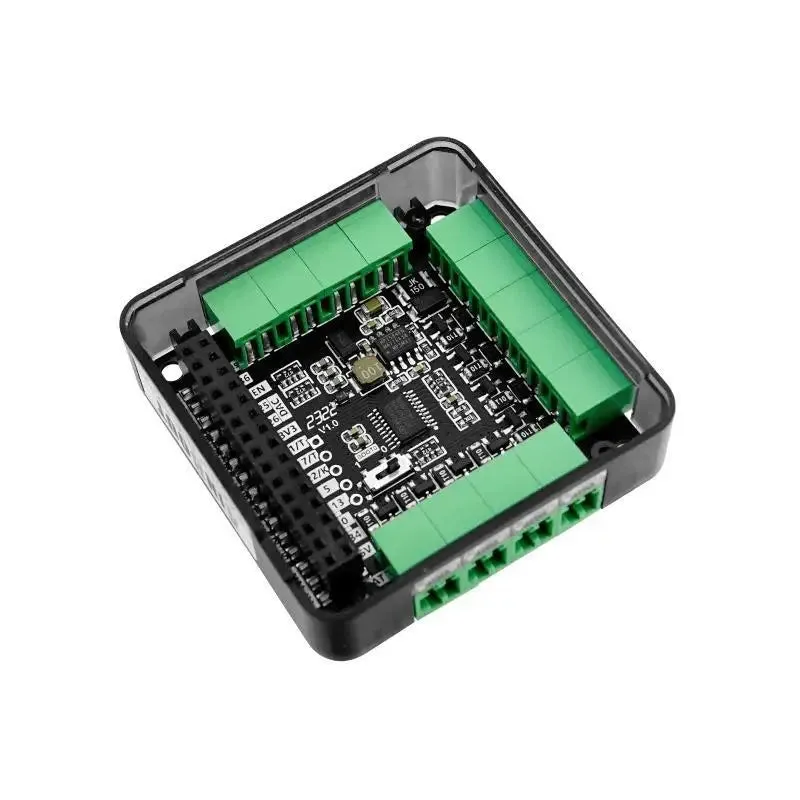

  • Adopt STM32F030 IO Chip
  • Includes 13x 2P Terminals
  • Compatible with Basic/Fire/Core2
  • Communication interface: I2C
  • Input Voltage: 9 ~ 24 V

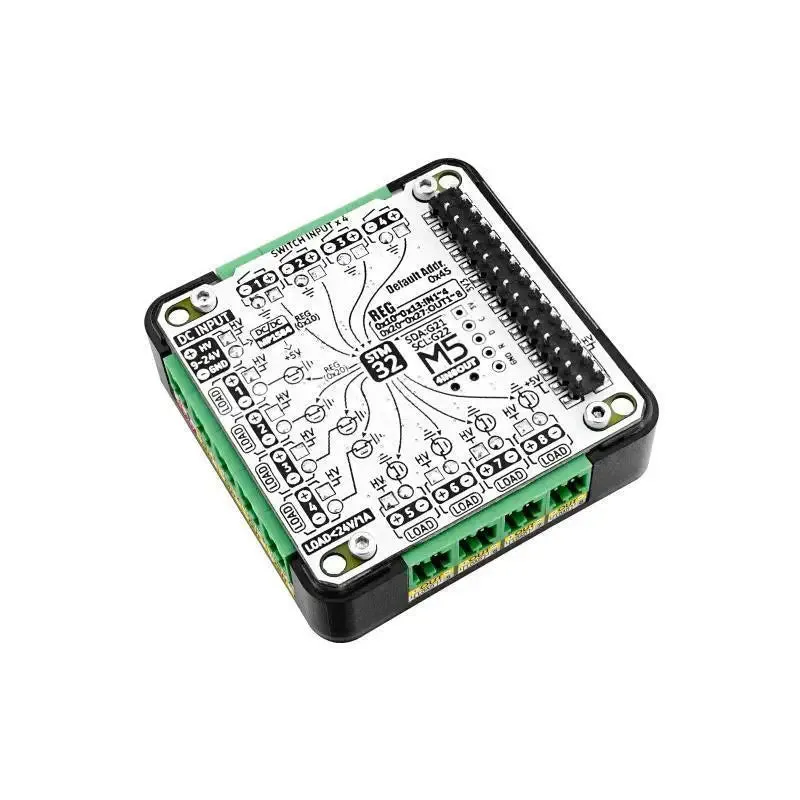

The M5Stack 4IN8OUT Multi-Channel DC Drive Module (STM32F030) is a 4-Channel Passive Input/Switch 8-Channel MOS Drive Output drive module. It adopts STM32F030 as the I2C IO chip, supporting 9-24V DC input, with internal DC-DC circuitry to 5 V.

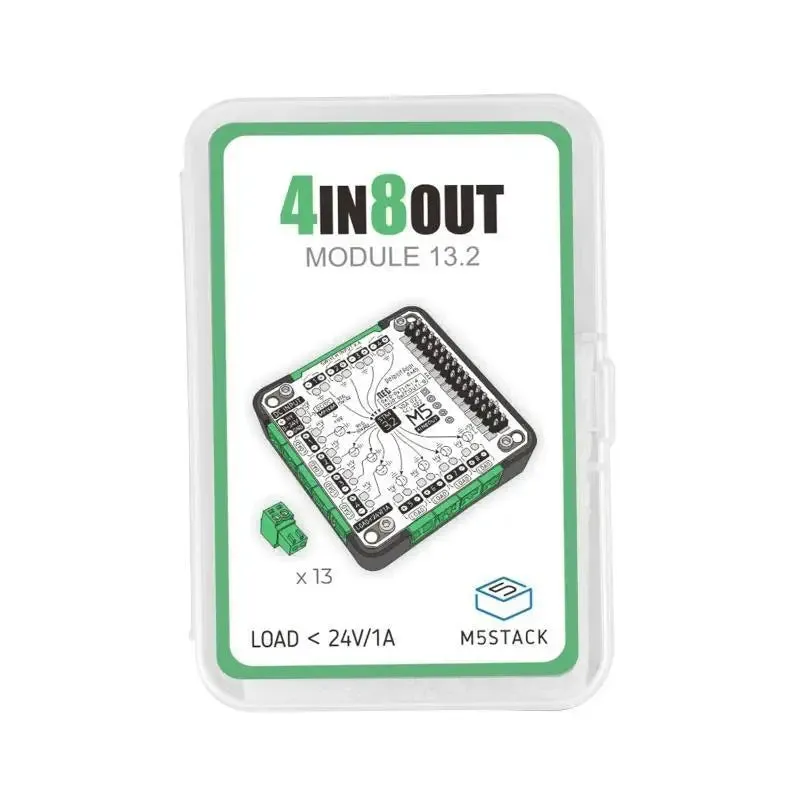

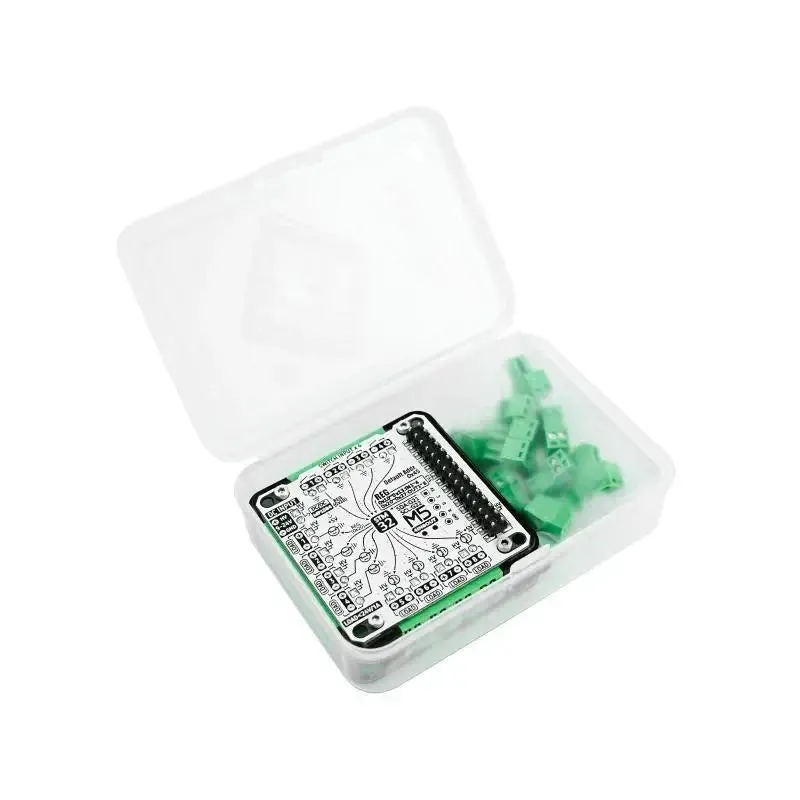

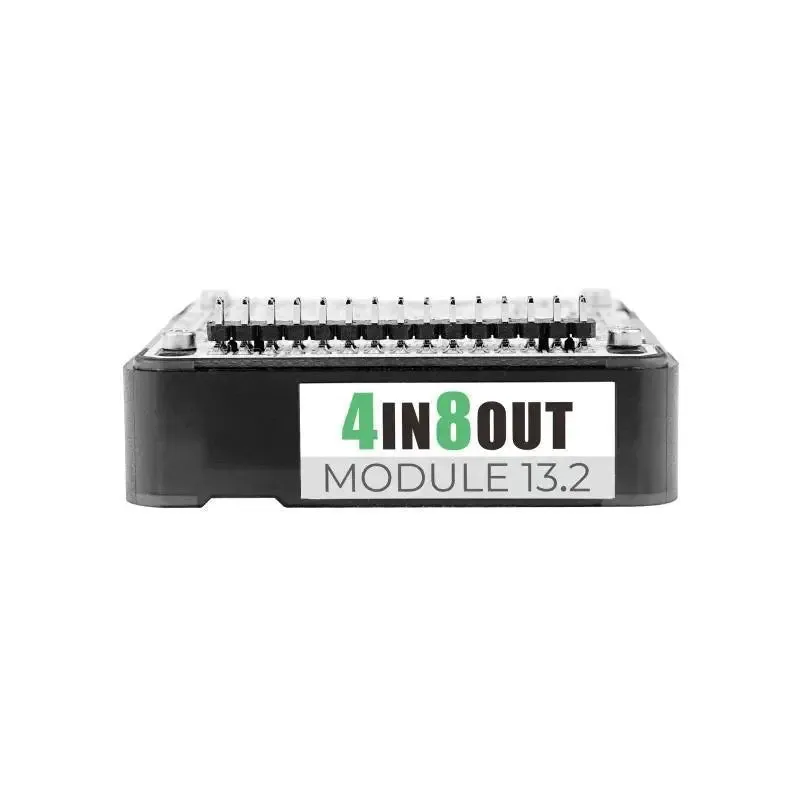

  • 1x MODULE 13.2 4IN8OUT
  • 13x 2P Terminal

Size

  • 54 x 54 x 13 mm
  • Input Voltage: 9 ~ 24 V

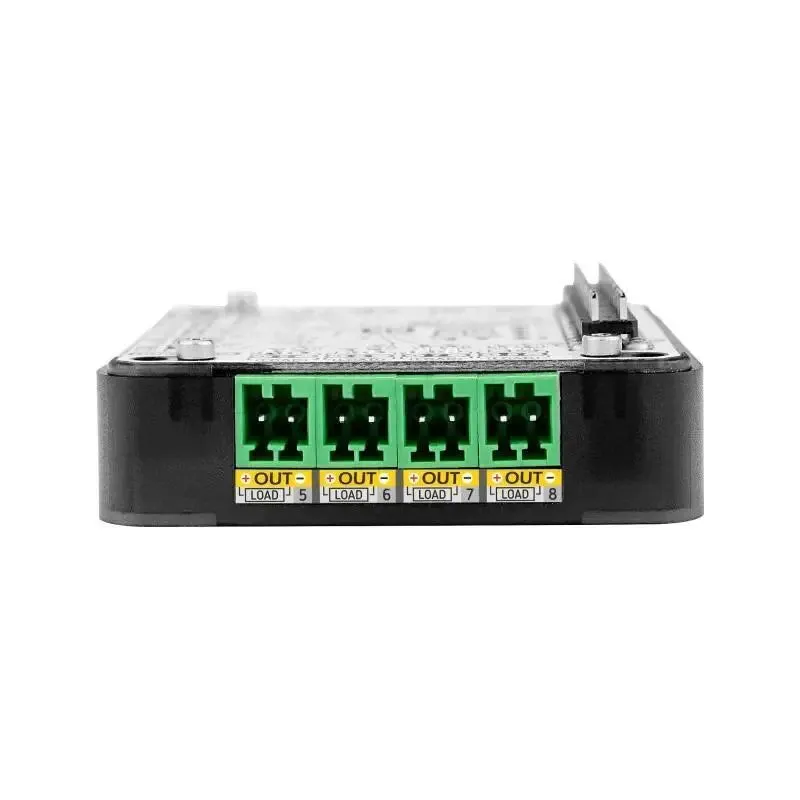

  • Output Channel: 8

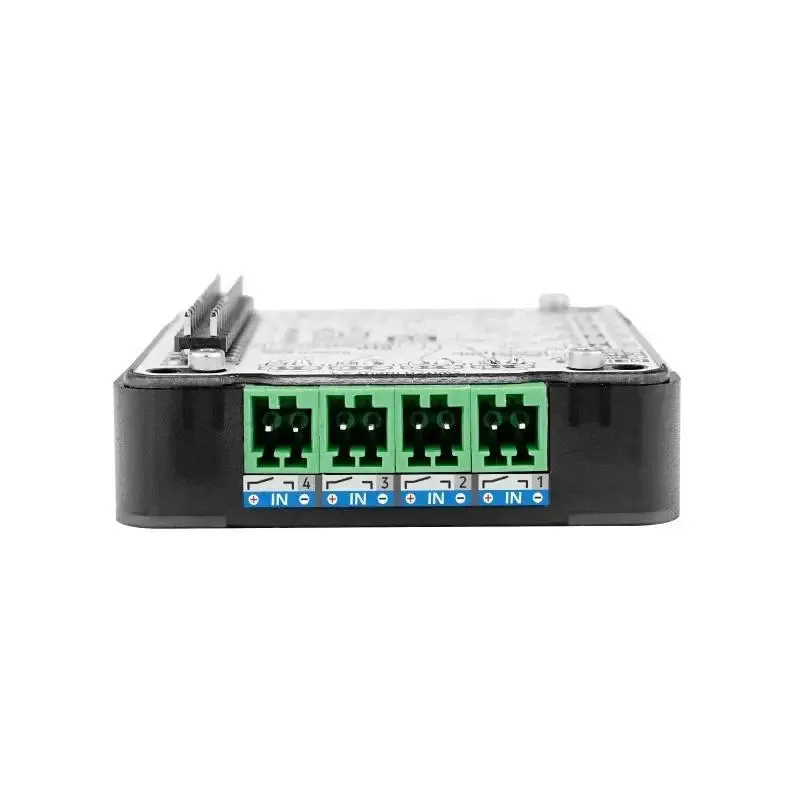

  • Input Channel: 4
  • Output Load: <1 A each Channel
  • Communication Interface: I2C

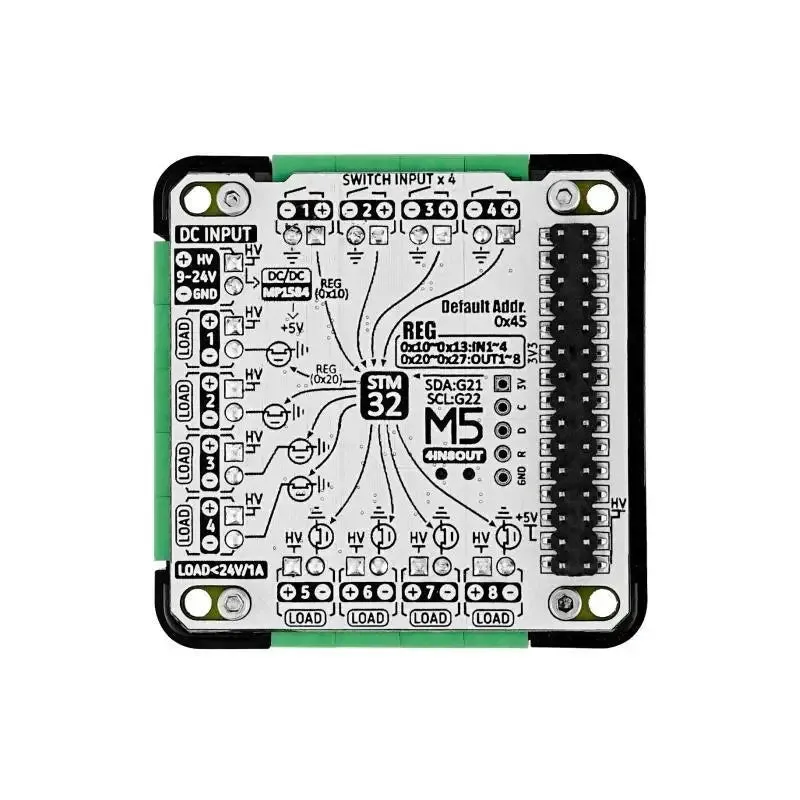

  • I2C Address: Default 0x45, changeable by modifying the register 0xF0
  • Weight: 21.9 g
