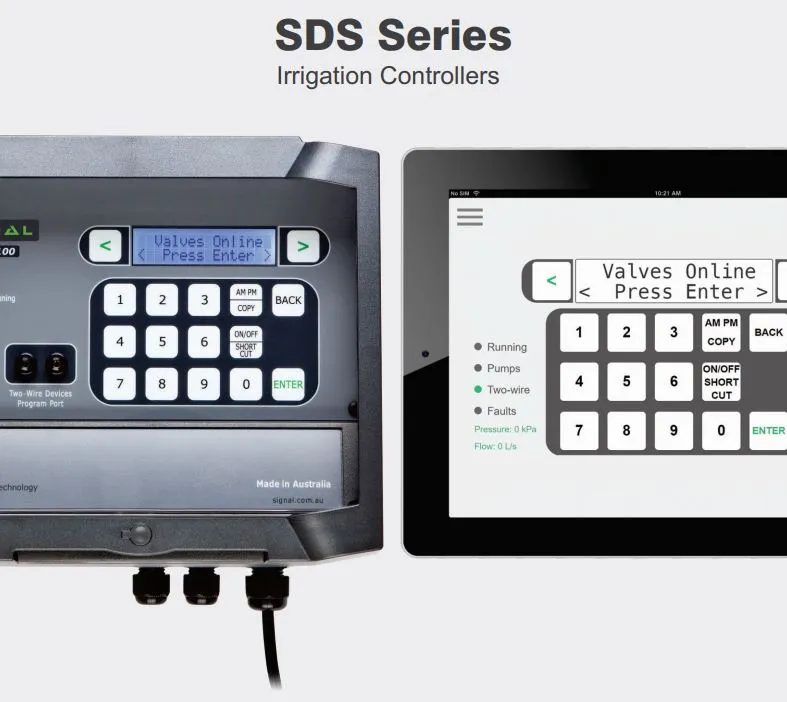

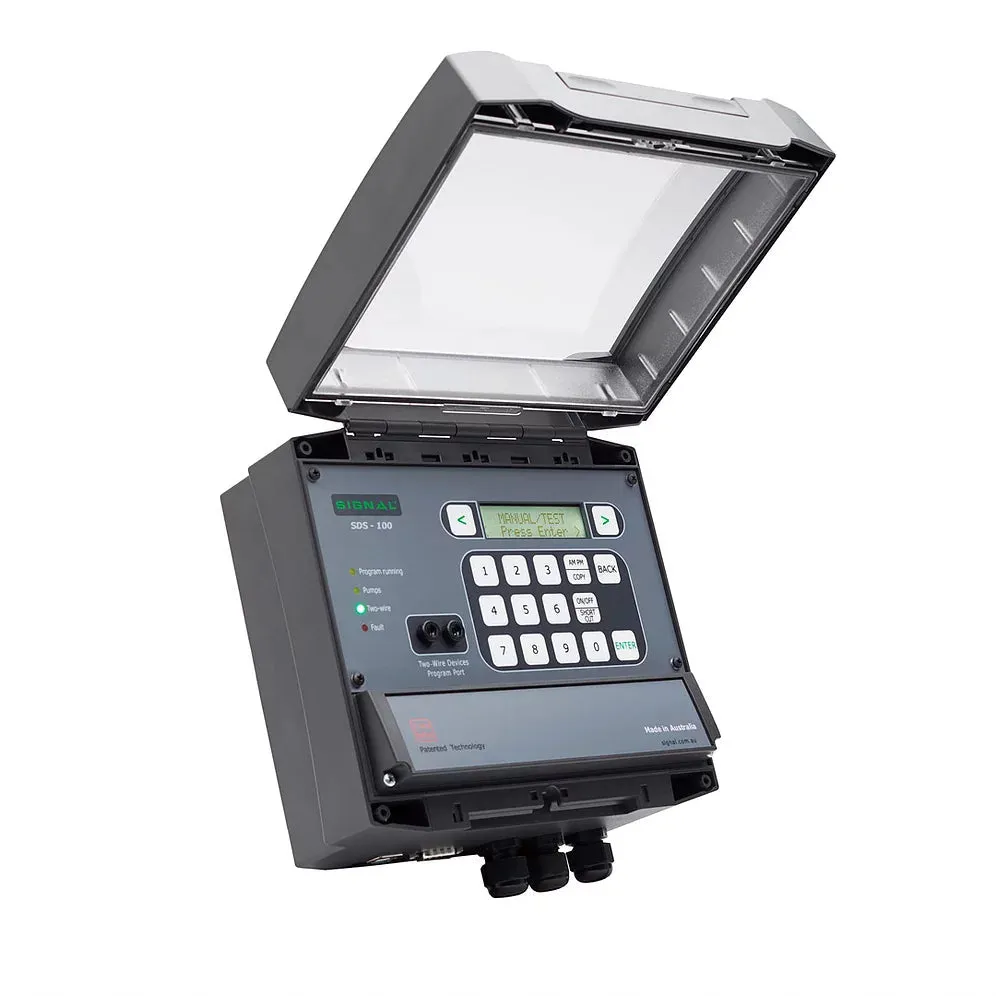

SD System Signal SDS Series Two Wire Irrigation Controllers SDS-100
Designed and manufactured in Australia.

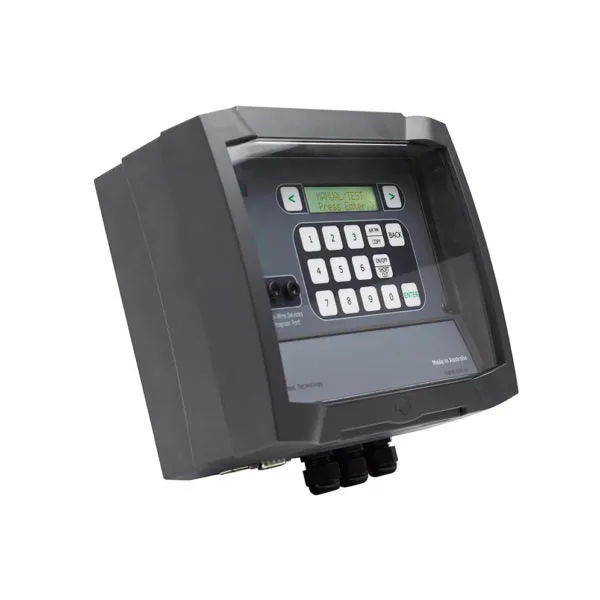

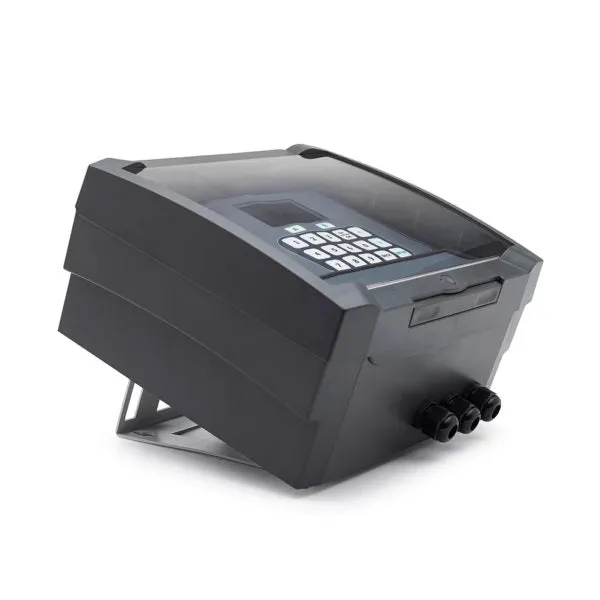

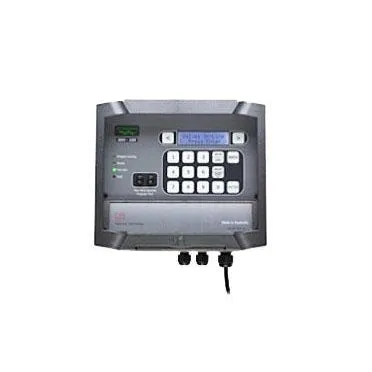

The SDS-100 is the ultimate SIGNAL irrigation controller, with a maximum capacity of 96 stations and the ability to run up to 8 valves simultaneously.

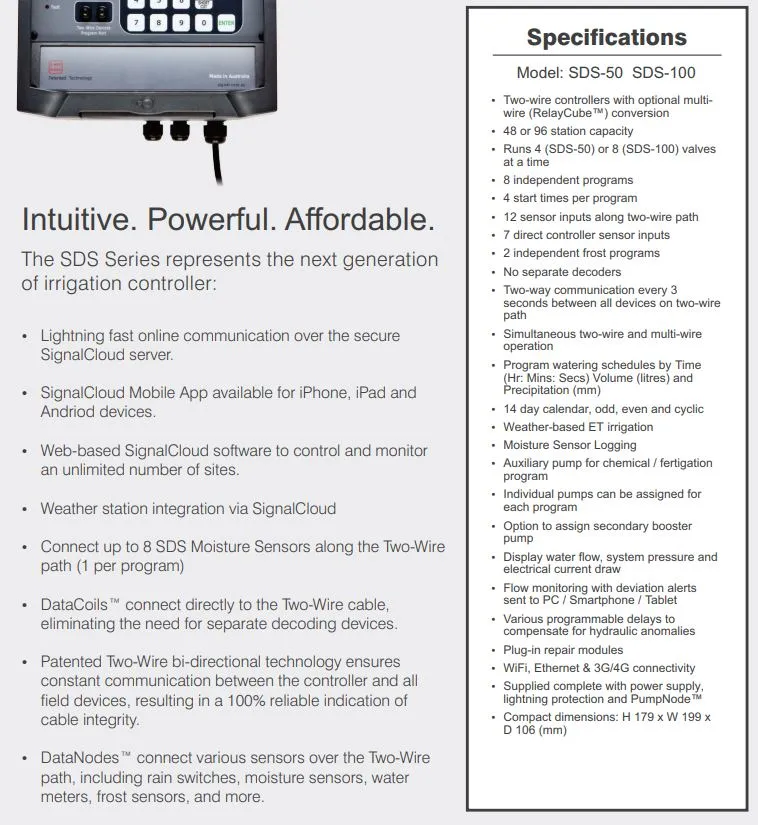

The SDS-Series irrigation controllers are built for reliability, efficiency, and workmanship. SDS-50 is the first model in a new range of high performance economically priced Two-Wire controllers. The SDS-100 is the top model in a new range of high performance, economically priced Two-Wire irrigation controllers.
Controllers are supplied complete with plug-in power supply, two-wire device programming leads, lightning protection and PumpNode™ - App downloadable from Apple App Store and Google Play.
FEATURES
- Powerful with intuitive programming, the SDS-Series controllers are flexible systems suitable for the complex requirements of both commercial landscape and agricultural applications.
- Every SDS-Series controller is supplied complete with power supply, lightning protection module and PumpNode.
- The economically priced SDS-Series controllers are uncompromising on quality and offers a capability not found on competing products many times their price.
- 96 Station, 96 DataValve™ (or ™) capacity.
- Operates up to eight valves at once, inclusive of a master valve.

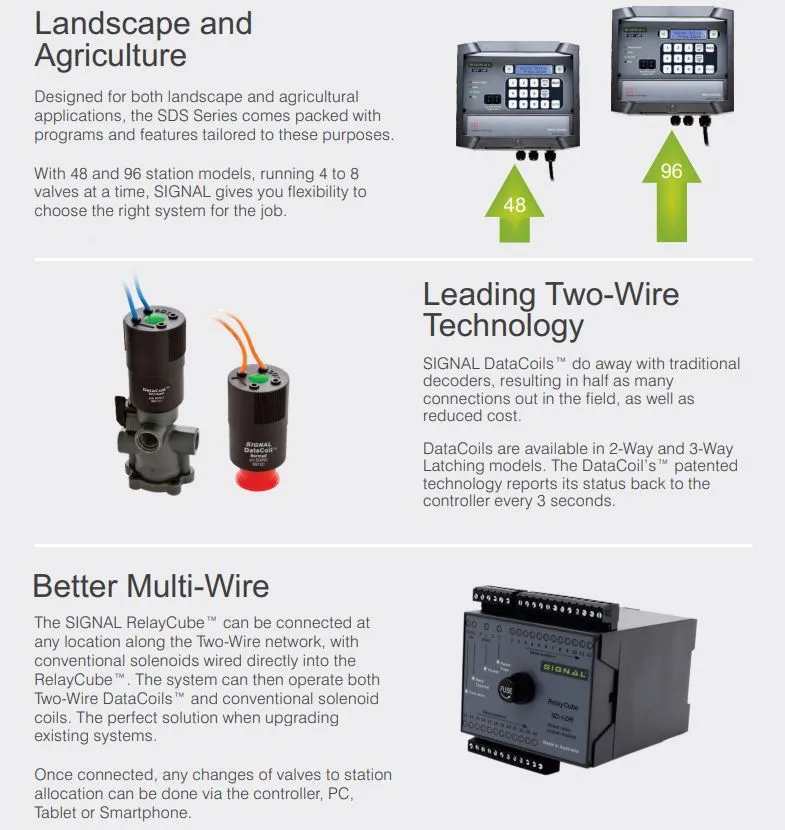

- No separate decoders – Decoders have been miniaturised and embedded within the coil (™).

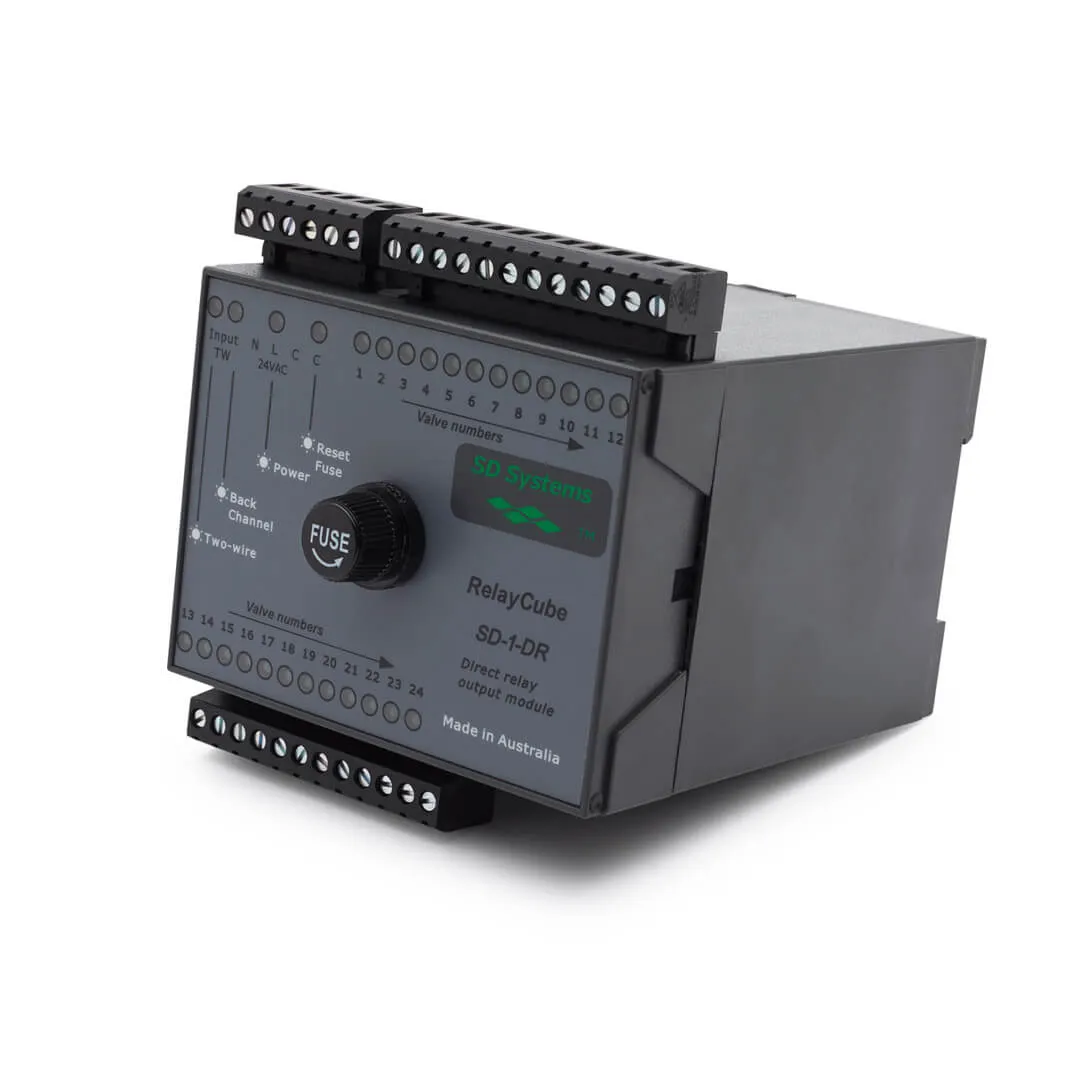

- Optional ™ multi-wire converter.
- 8 Independent programs.
- 12 Programmable field ™ connect directly to the two-wire cable.
- Moisture sensors (up to 8).

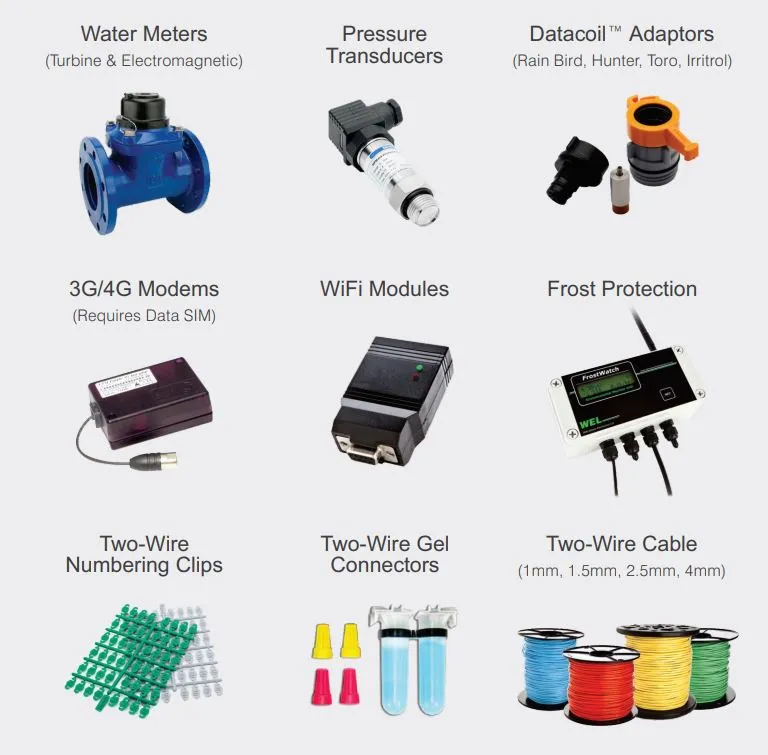

- Water meters (up to 8).
- Frost sensors (2 zones).
- 7 Direct controller sensor inputs connect to the controller terminal strip.
- Two-way communication every 3 seconds between all field devices and the controller.
- Program watering settings in Time, Volume (litres) and Precipitation (mm).
- 14 day calendar, 4 start times per program.
- Loop program for propagation.
- Run times in Hr : Min : Secs.
- Exclusive HydroSector™ program for matched precipitation zones.

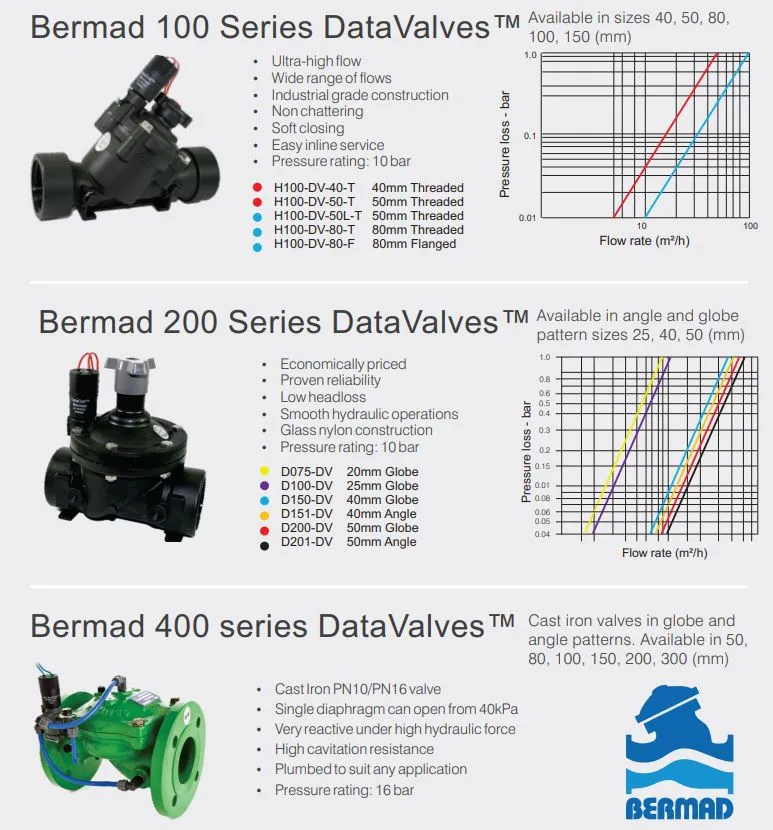

- DataValves™ can be assigned to any station by keypad entry, SignalCloud.com software or SDS-LINK SmartPhone/Tablet Apps.
- DataNodes™ can be assigned to any program.
- PumpNodes connect to the two-wire cable to activate pump-start relays.
- Auxiliary pump for chemical/fertigation program.
- Individual pumps can be assigned for each program.
- Option to assign a secondary boost pump to selected stations.
- 2 independent Frost programs.
- Water flow and system electrical current draw displayed.
- Flow deviation with email alerts. Skips to next station, then shuts down program after third skip if the alert stays active.
- Various programmable delays in programs to compensate for hydraulic anomalies. For example; slow closing valves, ramp-down of pumps and low or high pressure spikes.

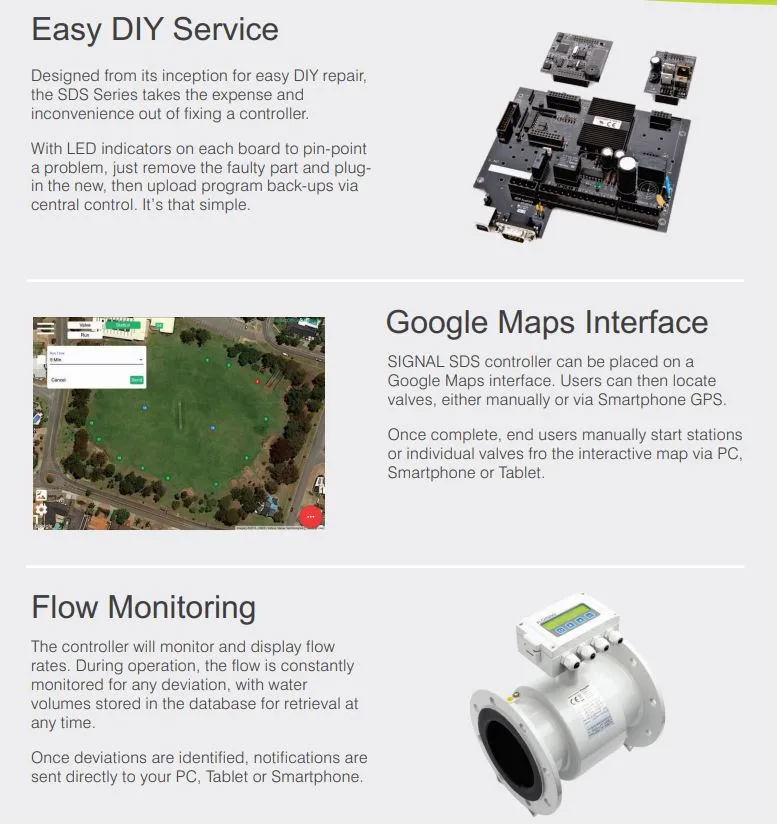

- Easy DIY repairs due to modular design of SDS plug-in boards.

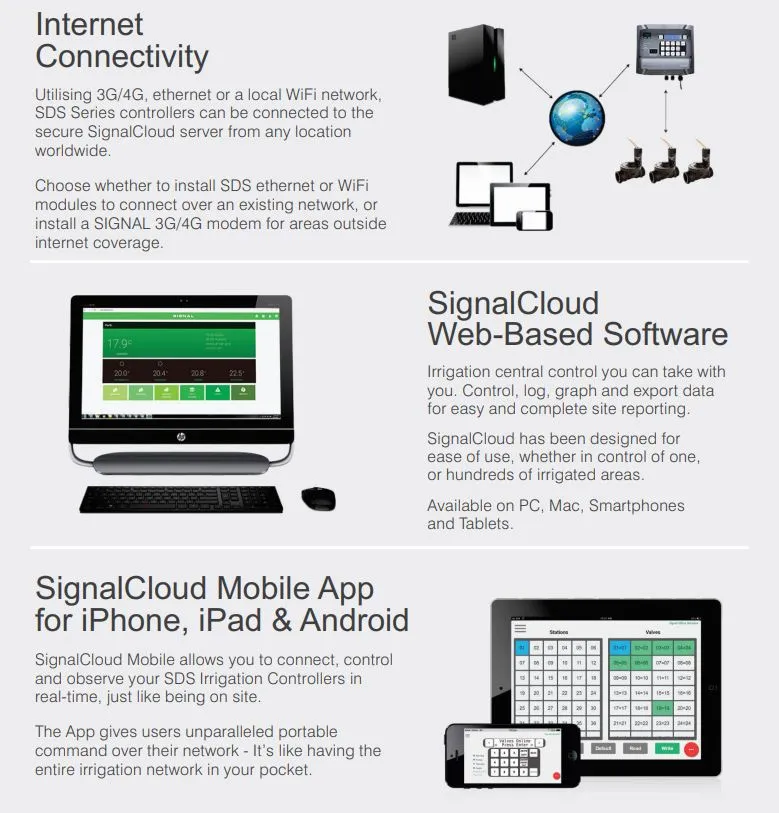

- Simple connectivity over SignalCloud. Control your irrigation over WiFi, 3G, 4G or Radio.
- Supported by SignalCloud Web-Based Irrigation Central Control Software.
- Free SDS-LINK Mobile App, available for download from the Apple App Store and Google Play.
