Tic T825 USB Multi-Interface Stepper Motor Controller
Tic T825 USB Multi-Interface Stepper Motor Controller
Title:
  • DefaultTitle

$ 39.95

$ 39.95

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

  • Tic T825 USB Multi-Interface Stepper Motor Controller
  • Facilitates seamless USB motor control
  • Supports six distinct control interfaces
  • Operates within 8.5 V to 45 V range
  • Integrates easily into various projects
  • Includes free cross-platform software

The Tic T825 USB Multi-Interface Stepper Motor Controller facilitates the straightforward control of a stepper motor, offering a seamless configuration process via USB through dedicated software. This controller is equipped with a Texas Instruments DRV8825 driver and supports six distinct control interfaces, including USB, TTL serial, I²C, analog voltage, quadrature encoder, and hobby radio control. It operates within a voltage range of 8.5 V to 45 V and can deliver up to 1.5 A per phase without additional cooling, with a maximum of 2.5 A per phase achievable with sufficient cooling measures.

This versatile module is designed to integrate easily into various projects, providing open-loop speed or position control for a bipolar stepper motor. The controller's configuration utility, compatible with Windows, Linux, and macOS, simplifies the initial setup and allows for in-system testing and monitoring via USB. The Tic T825 supports selectable microstep modes up to 1/32-step resolution and offers digitally adjustable current limits, ensuring precise control over motor operations.

Additional features include optional safety controls, input calibration, and adjustable scaling for analog and RC signals. The controller also includes a 5 V regulator, optional limit switch inputs with homing capabilities, and STEP/DIR outputs for controlling external stepper motor drivers. An Arduino library is available to facilitate integration with Arduino or compatible boards. Headers and terminal blocks are included but require soldering for assembly.

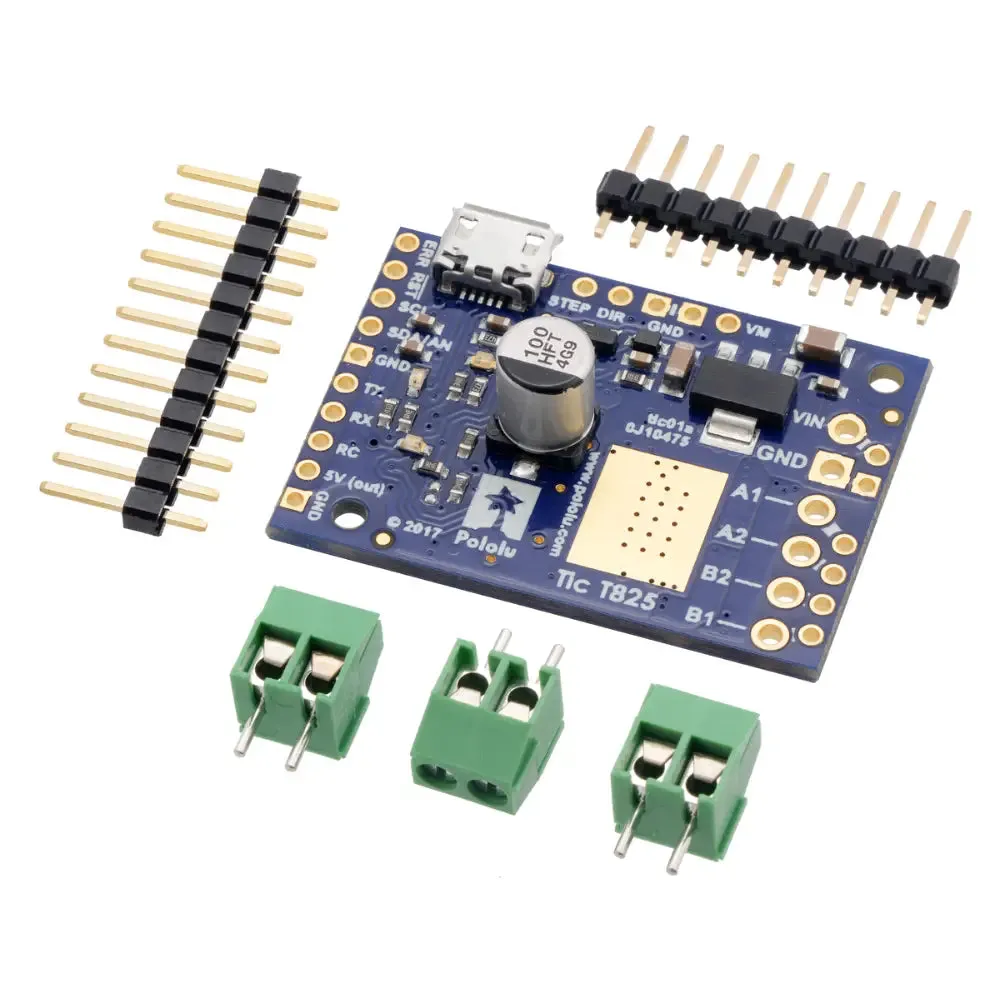

  • Tic T825 USB Multi-Interface Stepper Motor Controller
  • Headers and terminal blocks

Website

  • Open-loop speed or position control for one bipolar stepper motor

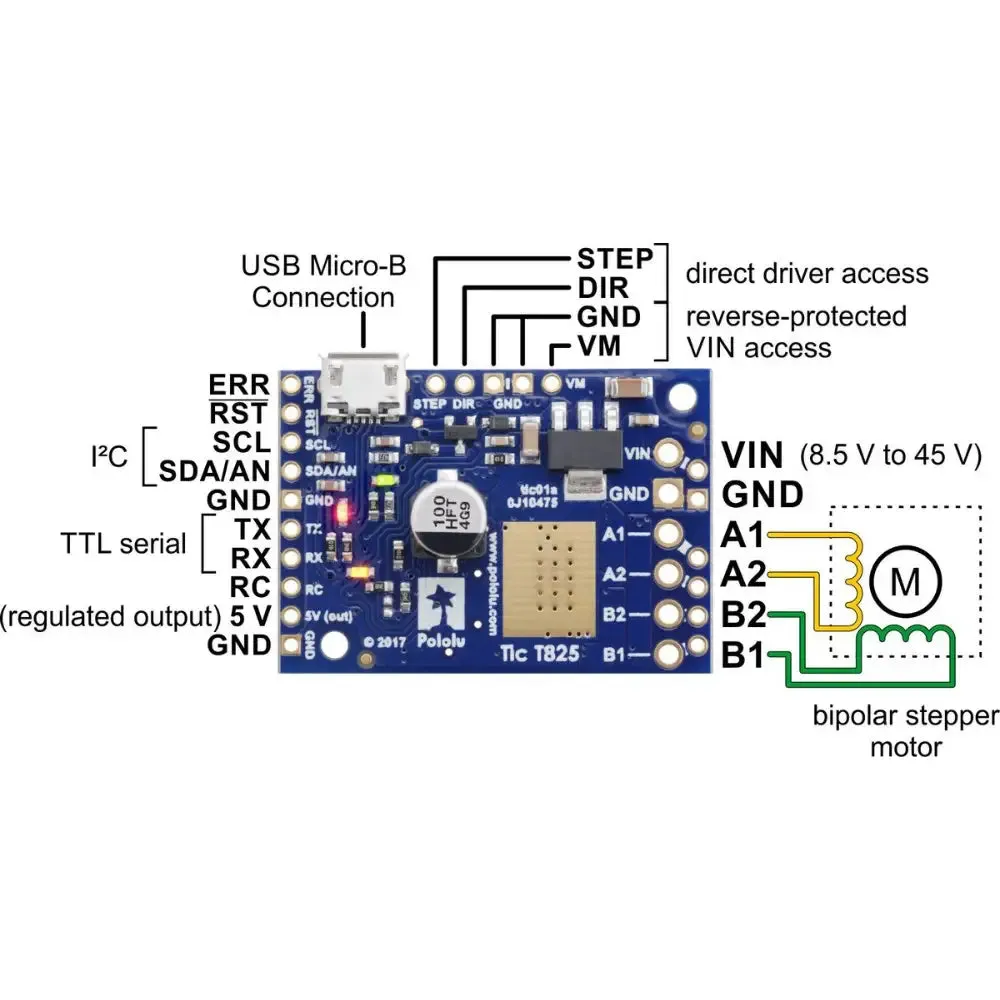

  • Multiple control interfaces: USB, TTL serial, I²C, RC hobby servo pulses, analog voltage, quadrature encoder
  • Maximum stepper speed of 50,000 steps per second
  • Very slow speeds down to 1 step every 200 seconds, or 1 step every 1428 seconds with reduced resolution
  • Selectable microstep modes up to 1/32-step resolution
  • Digitally adjustable current limit
  • Optional safety controls
  • Input calibration and adjustable scaling for analog and RC signals
  • Includes a 5 V regulator
  • Optional limit switch inputs with homing capabilities
  • Optional kill switch inputs
  • STEP/DIR outputs for controlling external stepper motor drivers
  • Connects to a computer via USB using a USB A to Micro-B cable
  • Free configuration software available for Windows, Linux, and macOS
  • Arduino library available
