Technical Specifications

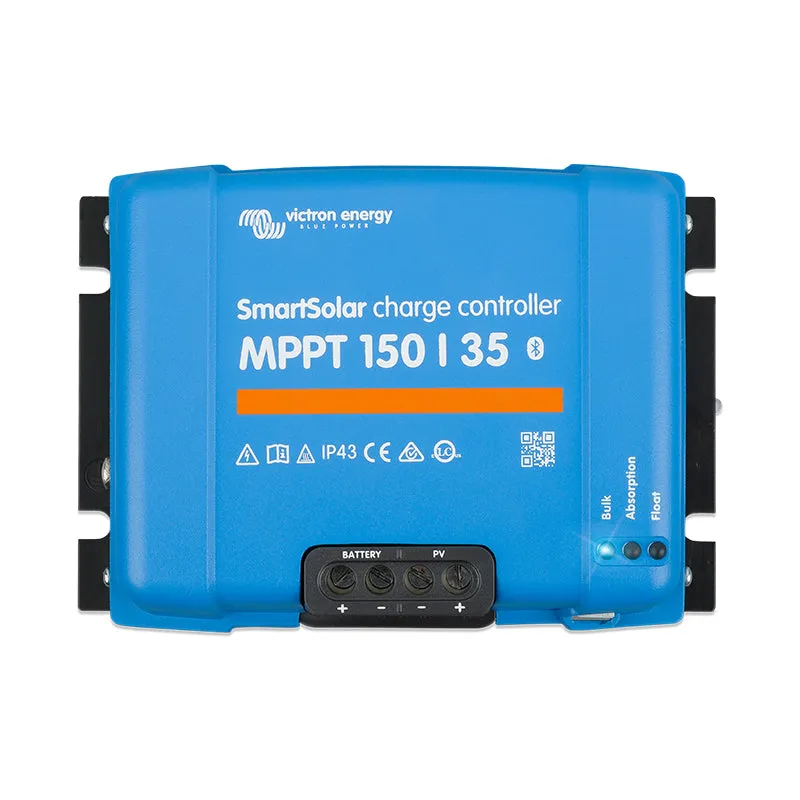

SmartSolar Charge Controller: 150/35
- Battery voltage: 12/24/48V Auto Select (software tool needed to select 36V).
- Rated charge current: 35A.
- Nominal PV power, 12V: 500W.
- Nominal PV power, 24V: 1000W.
- Nominal PV power, 36V: 1500W.
- Nominal PV power, 48V: 2000W.
- Max. PV short circuit current: 40A.
- Maximum PV open circuit voltage: 150V absolute maximum coldest conditions (145V start-up and operating maximum).
- Maximum efficiency: 98%.
- Self-consumption: < 20mA @ 12V / 15mA @ 48V.
- Charge voltage 'absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth).
- Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth).
- Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm.
- Temperature compensation: -16 mV / -32 mV / -64 mV / °C.
- Operating temperature: -30 to 60°C (full rated output up to 40°C).
- Humidity: 95%, non-condensing.
- Maximum altitude: 5000m (full rated output up to 2000m).
- Environmental condition: Indoor, unconditioned.
- Data communication port: VE. Direct.
Enclosure
- Colour: Blue (RAL 5012).
- PV terminals: 16 mm² / AWG6
- Protection category: IP43 (electronic components), IP22 (connection area).
- Weight: 1.25 kg.
- Dimensions (h x w x d): 130mm x 186mm x 70mm.
